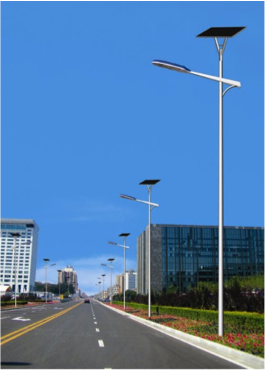

| SLSWA-SL1-30W/120W/120AH/6M | Applications | |
|---|---|---|
 |
| |
Specifications | ||
| Light Source | 30W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL led chips, 110~120LM/W (3300 Lumens) | |
| Solar Panel | 120W-17.5V, high-efficiency mono or polycrystalline PV module, A-class | |
| Battery | 12V-120AH, solar special lead-acid battery, fully sealed deep cycle free maintenance | |
| Pole Set | 6m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket and lamp arm, 13m cabling included | |
| Controller | 12V 10A, light/time intelligent control, PWM mode; waterproof, IP66 guard level | |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube | |
| Run Time | 12 hours, battery capacity provides 3 continuous days backup in cloudy or rainy conditions |

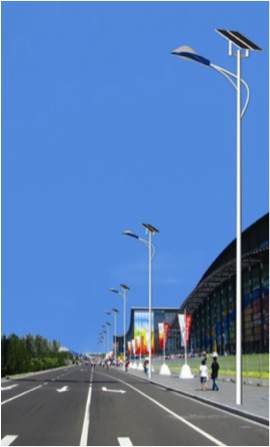

| SLSWA-SL2- SLSWA-50W/180W/180AH/8M | Applications | |
|---|---|---|
 |
| |
Specifications | ||
| Light Source | 50W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL led chips, 110~120LM/W (5500 Lumens) | |
| Solar Panel | 1 x 180W - 17.5V, high-efficiency mono or polycrystalline PV module, A-class | |
| Battery | 12V-180AH, solar special lead-acid battery, fully sealed deep cycle free maintenance | |
| Pole Set | 8m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket and lamp arm,13m cabling included | |
| Controller | 12V 10A, light/time intelligent control, PWM mode; waterproof, IP66 guard level | |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube | |
| Run Time | 12 hours, battery capacity provides 3 continuous days backup in cloudy or rainy conditions |
| SLSWA-SL3-70W/240W/240AH/8M | Applications | |
|---|---|---|
 |
| |
Specifications | ||
| Light Source | 70W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL led chips, 110~120LM/W (7700 Lumens) | |
| Solar Panel | 240W - 17.5V, high-efficiency mono or polycrystalline PV module, A-class | |
| Battery | 12V-240AH, solar special lead-acid battery, fully sealed deep cycle free maintenance | |
| Pole Set | 8m high, Q235 steel pipe; hot-dip galvanised and spray coated treatment, rustproof; including solar panel bracket and lamp arm,13m cabling included | |
| Controller | 12V 10A, light/time intelligent control, PWM mode; waterproof, IP66 guard level | |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube | |
| Run Time | 12 hours, battery capacity provides 3 continuous days backup in cloudy or rainy conditions |

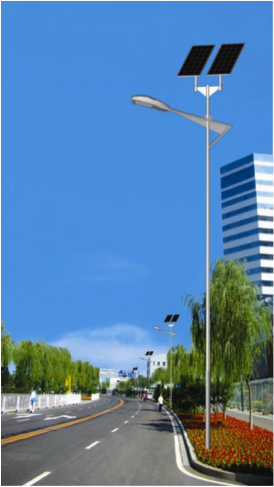

| SLSWA-SL4-85W/2x150W/2x150AH/8M | Applications | |
|---|---|---|
 |
| |
Specifications | ||
| Light Source | 85W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL led chips, 110~120LM/W (9350 Lumens) | |
| Solar Panel | 2 x 150W - 17.5V, high-efficiency mono or polycrystalline PV module, A-class | |
| Battery | 2 x 12V-150AH, solar special lead-acid battery, fully sealed deep cycle free maintenance | |
| Pole Set | 8m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket and lamp arm,13m cabling included | |
| Controller | 12V 10A, light/time intelligent control, PWM mode; waterproof, IP66 guard level | |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube | |
| Run Time | 12 hours, battery capacity provides 3 continuous days backup in cloudy or rainy conditions |

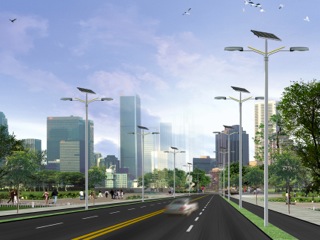

| SLSWA-SL5-2x50W/4x90W/2x180AH/10M | Applications | |
|---|---|---|
 |
| |
Specifications | ||
| Light Source | 2 x 50W DC12V; LED street lamp, Bridgelux 45MIL or 50MIL led chips, 110~120LM/W (11000 Lumens) | |
| Solar Panel | 4 x 90W - 17.5V, high-efficiency mono or polycrystalline PV module, A-class | |
| Battery | 2 x 12V-180AH, solar special lead-acid battery, fully sealed deep cycle free maintenance | |
| Pole Set | 10m high, Q235 steel pipe; hot-dip galvanized and spray coated treatment, rustproof; including solar panel bracket and lamp arm,26m cabling included | |
| Controller | 12V 10A, light/time intelligent control, PWM mode; waterproof, IP66 guard level | |
| Battery Box | PVC material, underground-buried type, waterproof and heat-dissipative; including PVC cable tube | |
| Run Time | 12 hours, battery capacity provides 3 continuous days backup in cloudy or rainy conditions |
